Description
Article no.: 606

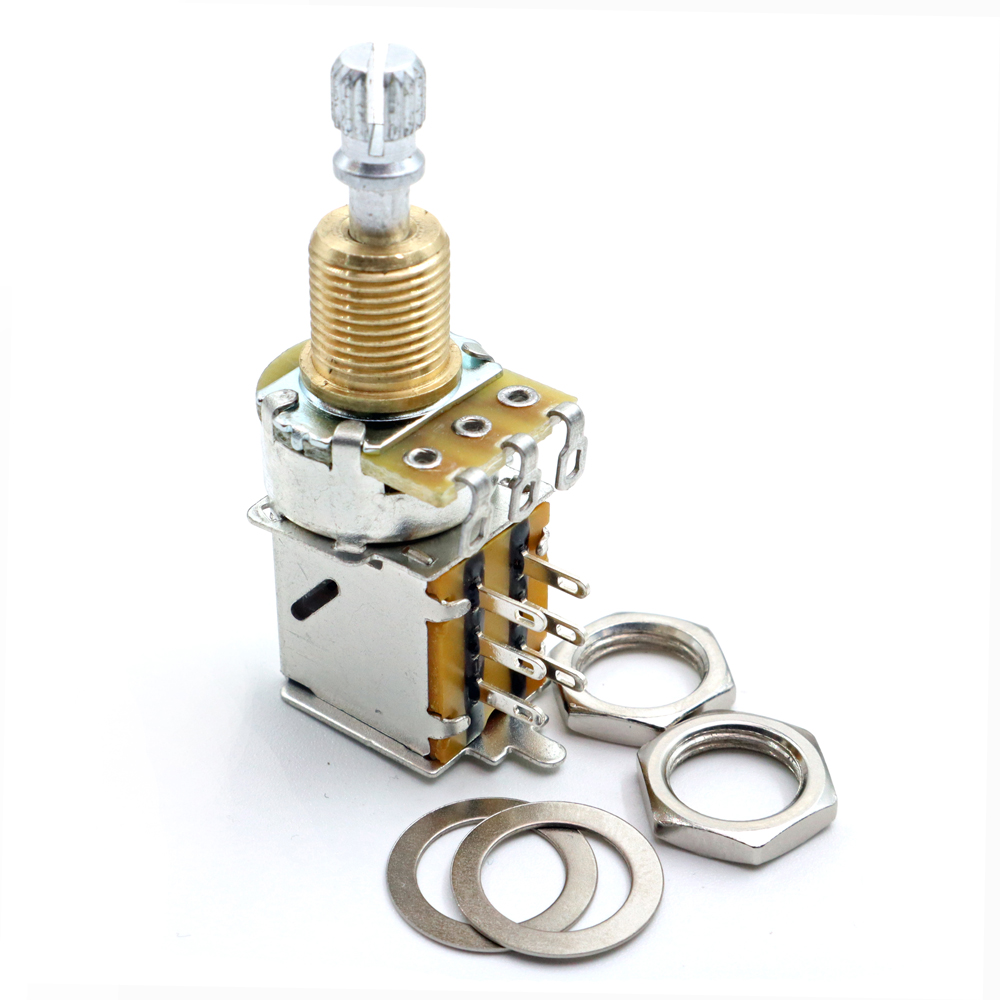

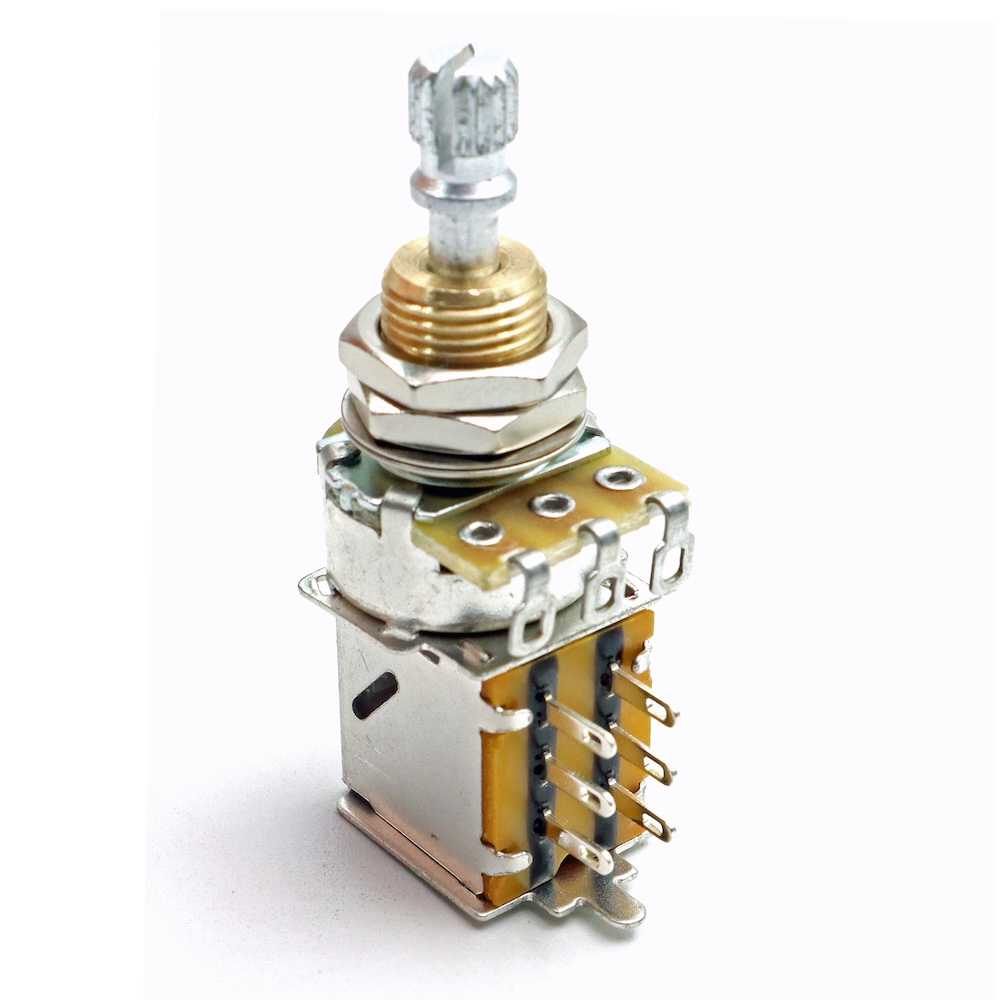

Push-Pull Potentiometer.
• A250K & A500K Push-Pull potentiometer.

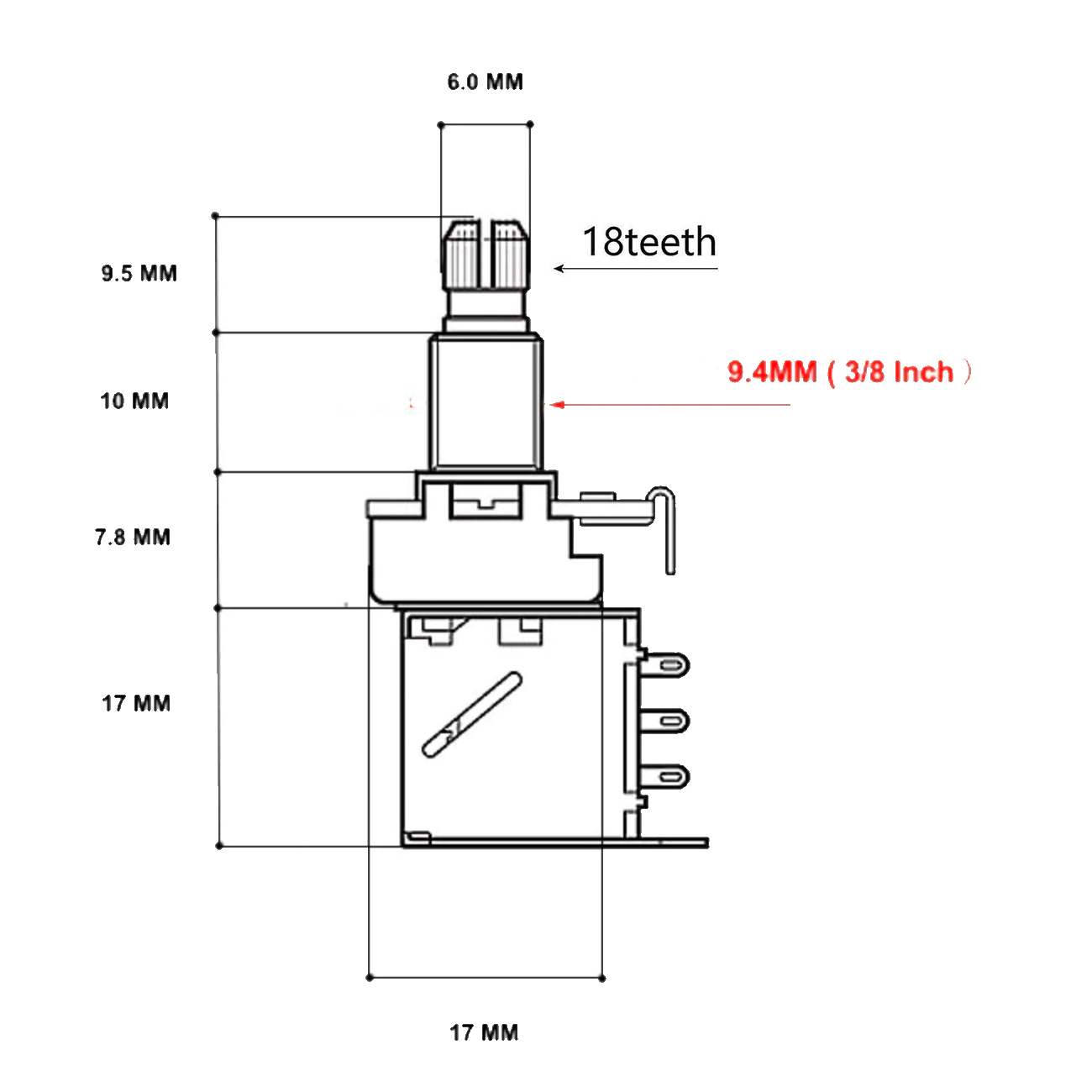

• Shaft diameter: 6mm split shaft (18 teeth, metric knob size)
• 3/8" Brass Bushing.
• 2 nuts and 2 dress washers included.
• Mounting hole diameter: 9,5mm.
• Required body cavity depth: 28,58mm (1-1/8")
• Made in Korea.
Control pickup phasing, series/parallel switching, coil-taps, and more. Can also be used as a normal volume.
• A250K & A500K Push-Pull potentiometer.
• Shaft diameter: 6mm split shaft (18 teeth, metric knob size)
• 3/8" Brass Bushing.
• 2 nuts and 2 dress washers included.
• Mounting hole diameter: 9,5mm.
• Required body cavity depth: 28,58mm (1-1/8")
• Made in Korea.
Control pickup phasing, series/parallel switching, coil-taps, and more. Can also be used as a normal volume.
