Push-Push Potentiometer (500k)
- Jos sinulla on kysyttävää, soita meille! 0440 575 737
- Toimitus 1-4 päivää.
Kuvaus

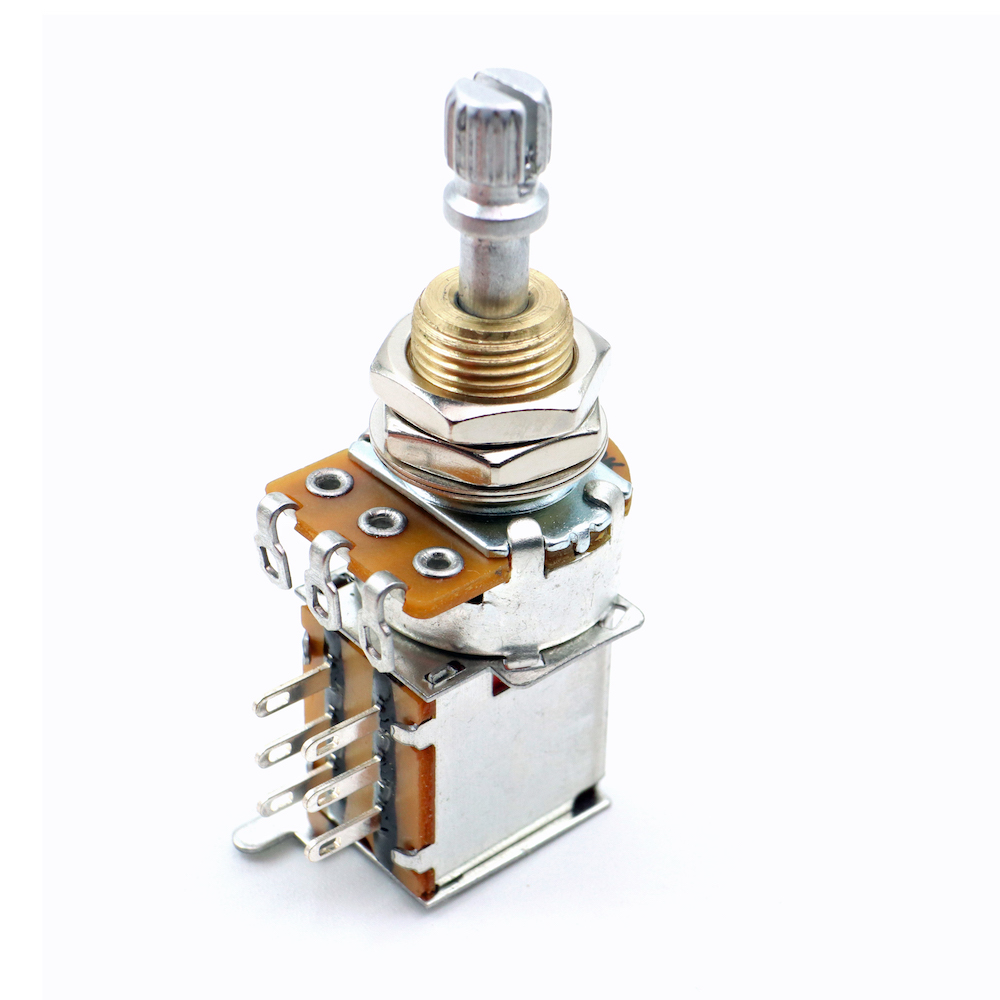

Push-Push Potentiometer (500k)
• A500K & B500K Push-Push potentiometer.
• Just push it! - switch the wiring by just pushing instead of pinching.

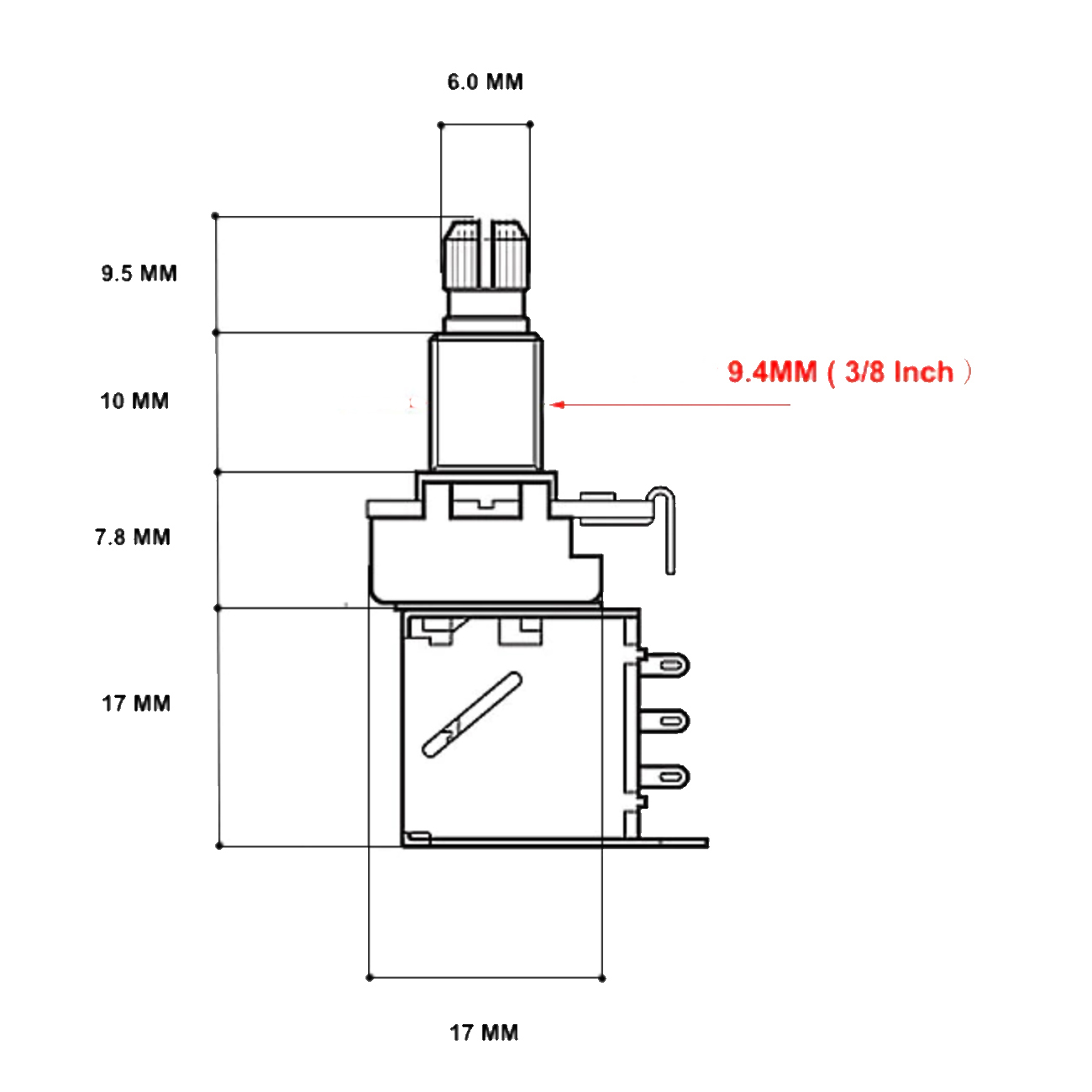

• Shaft diameter: 6mm split shaft (Metric knob size)
• 3/8" Brass Bushing.
• 2 nuts and 2 dress washers included.
• Mounting hole diameter: 9,5mm.
• Required body cavity depth: 28,58mm (1-1/8")
Control pickup phasing, series/parallel switching, coil-taps, and more. Can also be used as a normal volume or tone.
• A500K & B500K Push-Push potentiometer.
• Just push it! - switch the wiring by just pushing instead of pinching.
• Shaft diameter: 6mm split shaft (Metric knob size)
• 3/8" Brass Bushing.
• 2 nuts and 2 dress washers included.
• Mounting hole diameter: 9,5mm.
• Required body cavity depth: 28,58mm (1-1/8")
Control pickup phasing, series/parallel switching, coil-taps, and more. Can also be used as a normal volume or tone.
